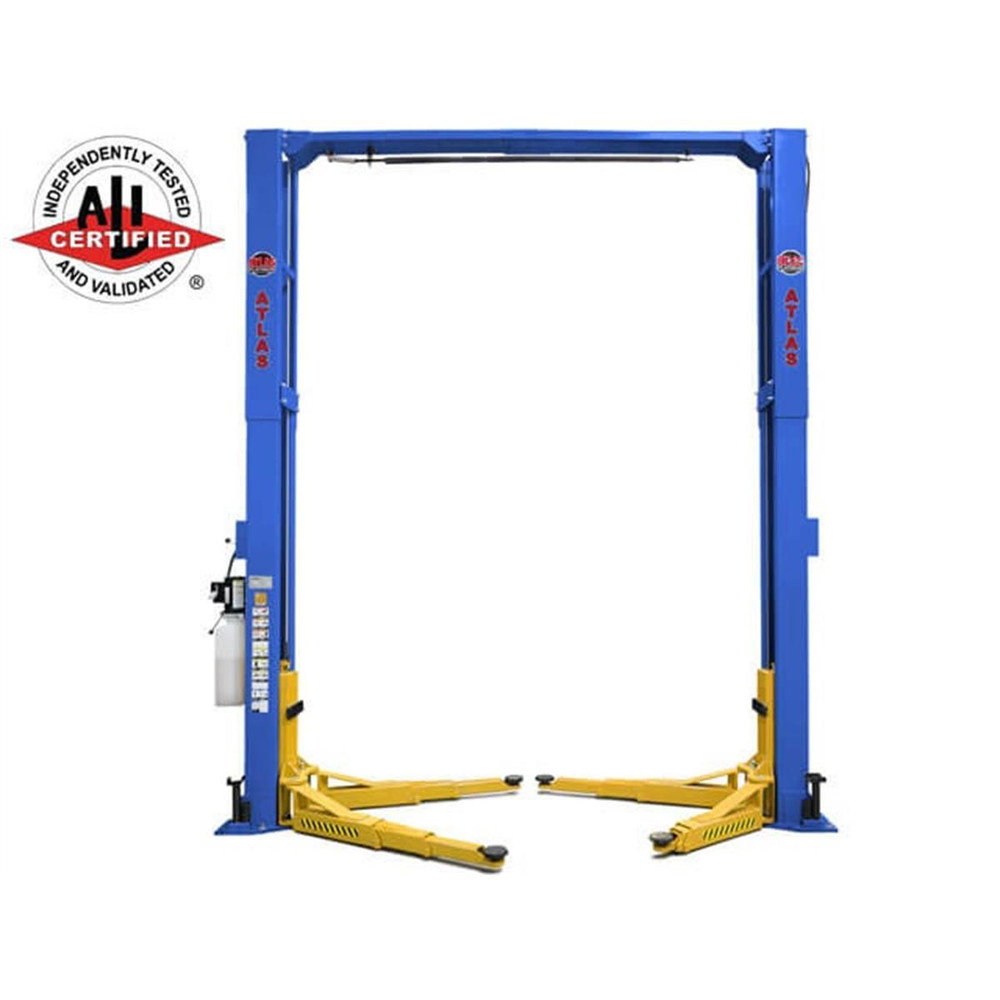

Atlas Platinum PVL12 ALI Certified 12,000 lb. Capacity 2-Post Lift

Features and Benefits: ALI Certified Lift 12,000 lb. Capacity Commercial Grade Extra Tall & Extra Wide Adjustable Height 165″ (13′ 9″) or 177″ (14′ 9″) 3-Stage Symmetric Arms Automatic Arm Restraints “Padded” Shut-Off Bar Thick Rubber Door Guards on Carriage Single Point Lock Releases Direct-Drive Cylinders Powder Coat Finish Free 8 Piece Truck Adapter Set Mounting Hardware Included Standard with Premium ALLY Power unit Shipping Weight: 2,425 lbs 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty This part number Freight Prepaid Atlas® AP-PVL12 Specifications: Capacity 12,000 LB. Overall Height 165″ (13′ 9”) or 177” (14′ 9”) Overall Floor Width 150 3/8″ (12′ 6 3/8”) Outside Column to Outside Column 139 1/8″ (11′ 7 1/8″) Maximum Lift Height (Without Adapters) 73 5/8″ Maximum Lift Height (With Adapters) 85 1/2″ Minimum Arm Height 4 1/2″ Inside Column 122 5/8” (10′ 2 5/8”) Drive Thru 109 5/8″ (9′ 1 5/8”) Column Size 7 1/2″ x 14 1/2″ Column Thickness of Steel 6mm Base Of Lift 17 1/2″ x 20 1/2″ Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 2,425 LBS. Adapter Heights 4 Each 4.5”, 8.5” Arm Hole/Adapter Peg Size 1.57”
