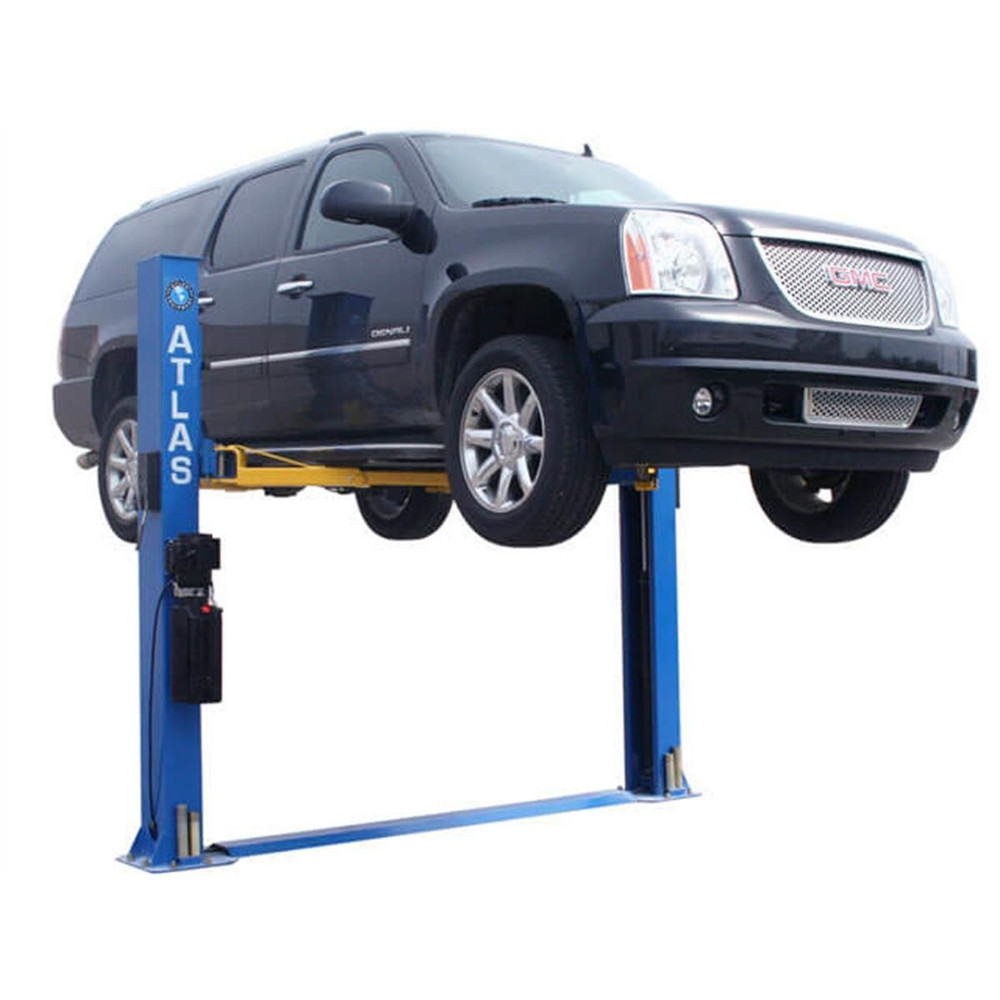

Atlas BP8000 8000 lb Capacity Baseplate 2 Post Lift

Atlas BP8000 8000 lb Capacity Baseplate 2 Post Lift   Features and Benefits: 8,000 lb. Capacity Hobbyist Grade Lift ‐ Not intended for heavy commercial use Baseplate, Open-Top Style Lift 3-Stage front arms/2-Stage rear arms Automatic Arm Restraints Single-Point Lock Release Double Safety Lock System Dual Hydraulic Chain-Drive Cylinders Free 12 Piece Truck Adapter Set Mounting Hardware Included Shipping Weight: 1,300 lbs. 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only This part number FREIGHT PREPAID Atlas® ATTD-BP8000 Specifications Capacity 8,000 LB. Overall Height 108″ (9′) Overall Floor Width 132″ (11′) Outside Column to Outside Column 124″ (10′ 4″) Maximum Lift Height (Without Adapters) 75 1/2″ Maximum Lift Height (With Adapters) 86 1/2″ Minimum Arm Height 4″ Inside Column 109 1/8” (9′ 1 1/8”) Drive Thru 99” (8′ 3”) Column Size 7 1/4″ x 11″ Column Thickness of Steel 6mm Base Of Lift 17 1/2″ x 17 3/4″ Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 1,300 LBS. Adapter Heights 4 Each 2”, 3”, 6” Arm Hole/Adapter Peg Size 1.5” Requires a minimum of 4″ of concrete with a 3000 psi. rating Not for use with Diesel Trucks (3/4 ton diesel or larger). Due to the weight placed on the front lifting arms, we recommend customers purchase a 10K or 11K 2-post lift.
