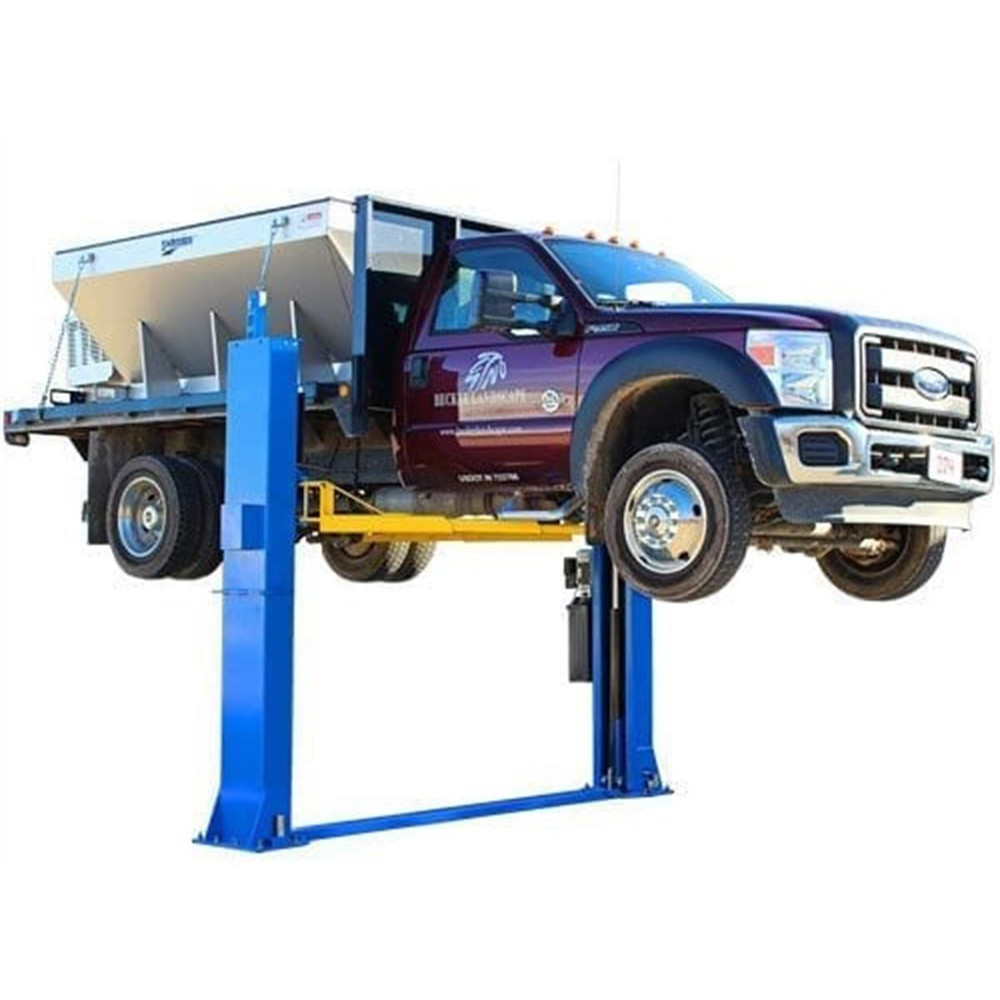

Atlas BP12000X Commercial Grade Baseplate 12,000 lb. Capacity 2-Post Lift

Features and Benefits: 12,000 lb. Capacity Heavy Duty, Commercial Grade Baseplate, Open-Top Style Lift Overall Height: 122 1/2″ (10′ 2 1/2″) Adjustable Width 3-Stage Symmetric Arms Automatic Arm Restraints Single-Point Lock Release Rubber Guards on Carriages Dual Hydraulic Chain-Over Cylinders Powder Coat Finish Free 12 piece Truck Adapter Set Mounting Hardware Included Shipping Weight: 2,130 lbs. 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only This part number FREIGHT PREPAID Atlas® ATTD-BP12000X Specifications Capacity 12,000 LB. Overall Height 122 1/2″ (10′ 2 1/2″) Overall Floor Width 149 3/8″ (12′ 5 3/8″) or 154 1/2” (12′ 10 1/2”) Outside Column to Outside Column 135 7/8″ (11′ 3 7/8″) or 141 1/4″ (11′ 9 1/4”) Maximum Lift Height (Without Adapters) 77 1/2″ Maximum Lift Height (With Adapters) 88 1/2″ Minimum Arm Height 4″ Inside Column 118 1/8” (9′ 10 1/8”) or 123 1/2″ (10′ 3 1/2″) Drive Thru 103 5/8” (8′ 7 5/8”) or 109” (9′ 1”) Column Size 8 3/4″ x 14″ Column Thickness of Steel 6mm Base Of Lift 18 1/2″ x 21 1/2″ Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 2,130 LBS. Adapter Heights 4 Each 2”, 3”, 6” Arm Hole/Adapter Peg Size 1.5” Requires a minimum of 6″ of concrete with a 3000 psi. rating
