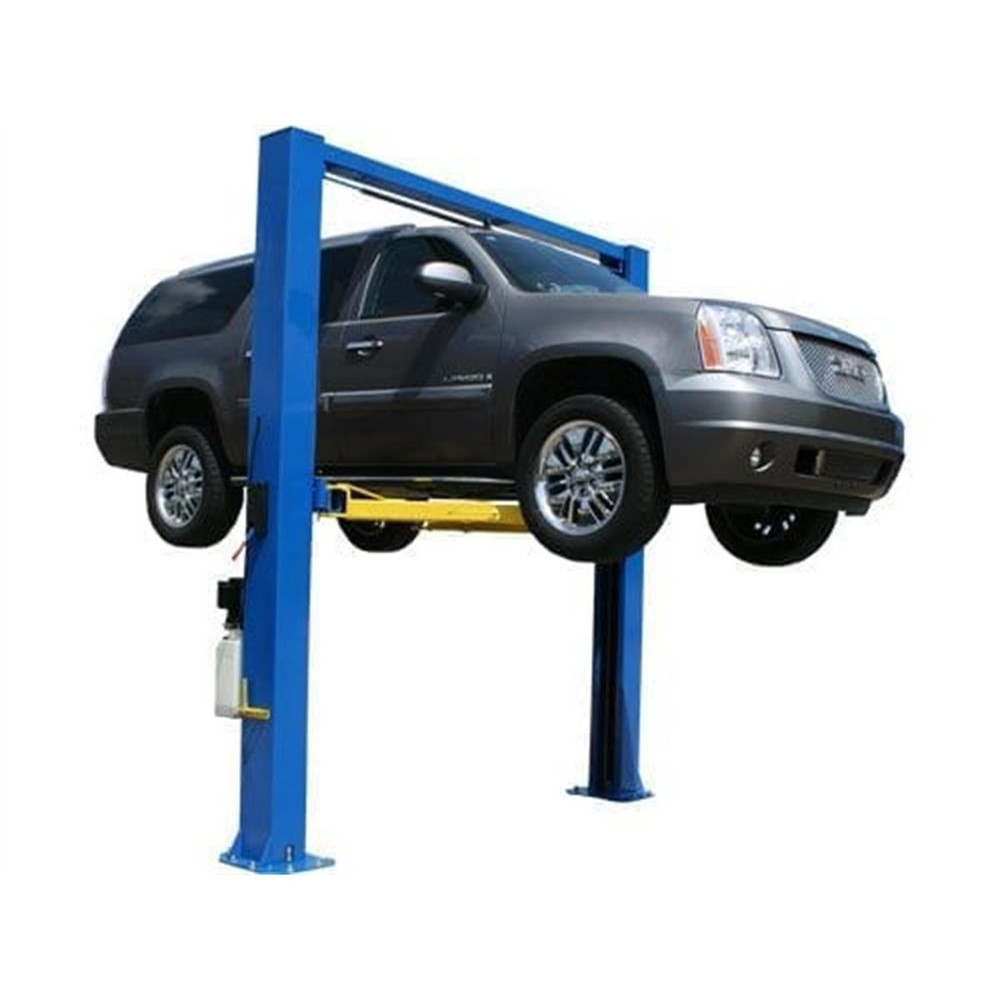

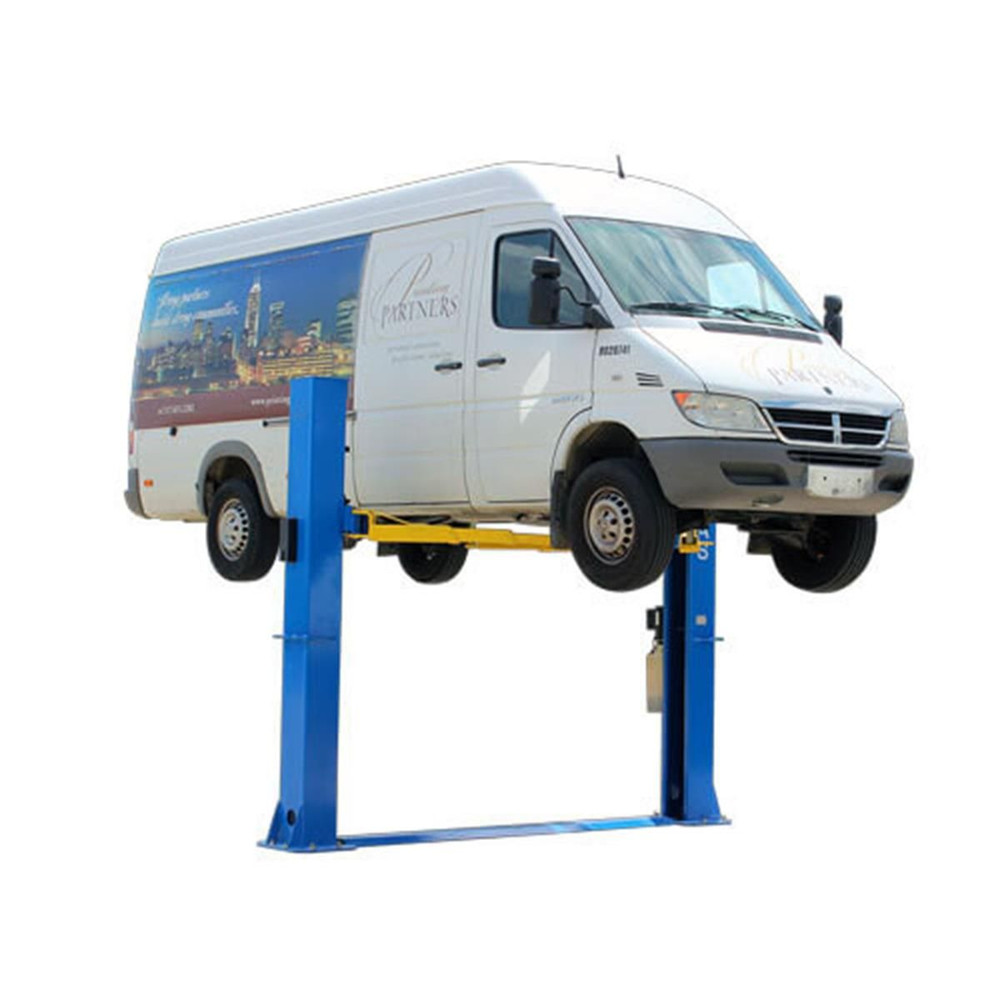

Atlas BP10000X Commercial Grade Baseplate 10,000 lb. 2-Post Lift

Features and Benefits: 10,000 lb capacity Commercial Grade Baseplate, Open-Top Style Lift Overall Height: 111 7/8′ (9′ 3 7/8″) Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously Super-Symmetric Arms Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard Welded Support Gussets Increase Column Strength Automatic Arm Restraints Powder Coat Finish Free 12 Piece Truck Adapter Set Shipping Weight: 1,640 LBS. 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only This part number FREIGHT PREPAID Atlas® ATTD-BP10000X Specifications Capacity 10,000 LB. Overall Height 111 7/8″ (9′ 3 7/8″) Overall Floor Width 139 1/8″ (11′ 7 1/8″) Outside Column to Outside Column 134 1/2″ (11′ 2 1/2″) Maximum Lift Height (Without Adapters) 77 3/8″ Maximum Lift Height (With Adapters) 86 3/8″ Minimum Arm Height 4″ Inside Column 112 1/4” (9′ 4 1/4”) Drive Thru 101 1/4” (8′ 5 1/4”) Column Size 9 1/2″ x 11″ Column Thickness of Steel 6mm Base Of Lift 17 1/2″ x 21 1/2″ Motor/Electrical Requirement 220 volt single (1) phasem (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 1,640 LBS. Adapter Heights 4 Each 2”, 3”, 6” Arm Hole/Adapter Peg Size 1.5” Requires a minimum of 4″ of concrete with a 3000 psi. rating
