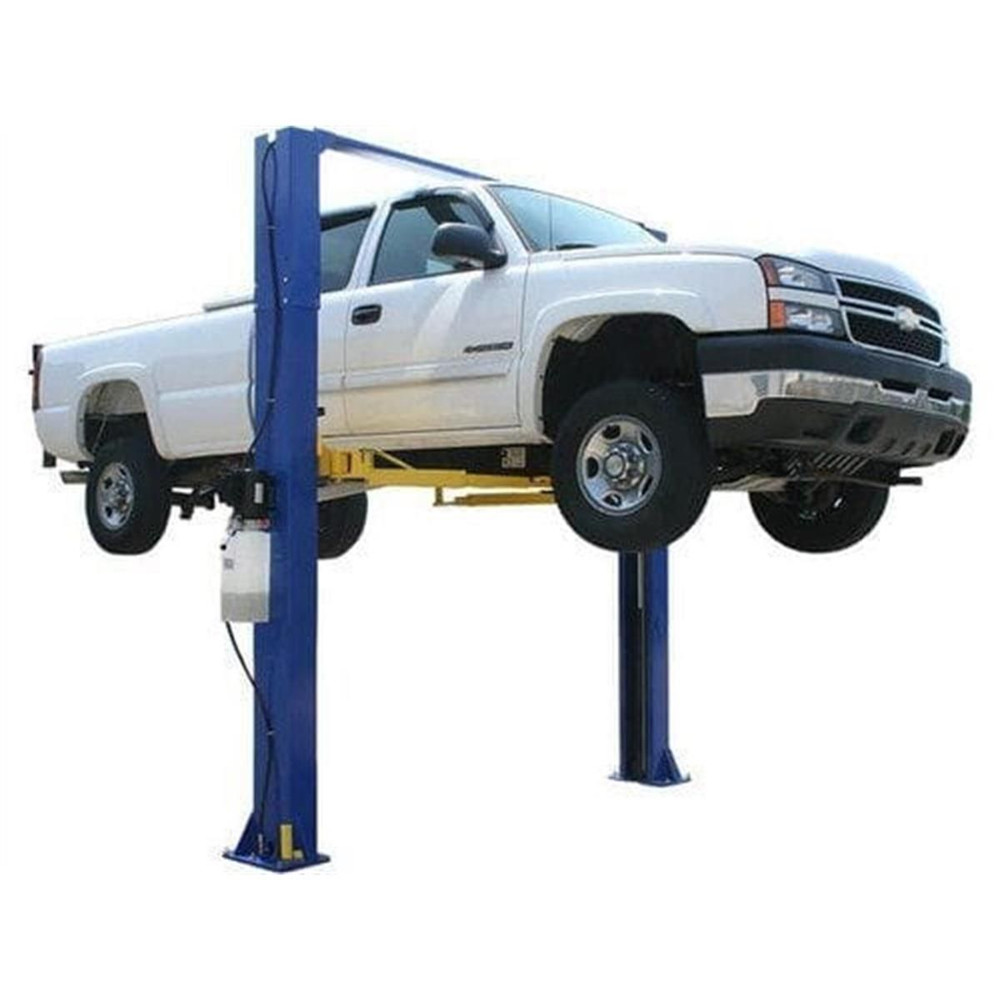

Atlas 9KOHX Overhead 9000 lb Capacity 2 Post Lift

9,000 lb. Capacity Overhead, Open-Floor design Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″) Asymmetric/Symmetric Arms Automatic Arm Restraints Dual-Point Lock Release Rubber Guards on Carriages Dual Hydraulic Chain-Drive Cylinders Secondary Lock System Free 8 Piece Truck Adapter Set Free set of Sliding Arm Adapters Mounting Hardware Included Shipping Weight: 1,450 lbs. 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only This part number FREIGHT PREPAID TO LOWER 48 (RESTRICTIONS APPLY) Atlas® 9KOHX Specifications Capacity 9,000 LB. Overall Height 138″ (11′ 6″) or 142″ (11′ 10″) Overall Floor Width 134 1/2 (11′ 2 1/2″) Outside Column to Outside Column 124 7/8 (10′ 4 7/8″) Maximum Lift Height (Without Adapters) 74 1/2″ Maximum Lift Height (With Adapters) 81″ Minimum Arm Height 4″ Inside Column 110” (9′ 2″) Drive Thru 100” (8′ 4″) Symmetric/ 90 1/2″ (7′ 6 1/2″) Asymmetric Column Size 7 1/4″ x 11″ Column Thickness of Steel 5mm Base Of Lift 14 1/4″ x 18″ Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 1,450 LBS. Adapter Heights 4 Each 1.5″, 5″ Arm Hole/Adapter Peg Size 1.5′ Requires a minimum of 4″ of concrete with a 3000 psi. rating Not for use with Diesel Trucks (3/4 ton diesel or larger). Due to the weight placed on the front lifting arms, we recommend customers purchase a 10K or 11K 2-post lift.
